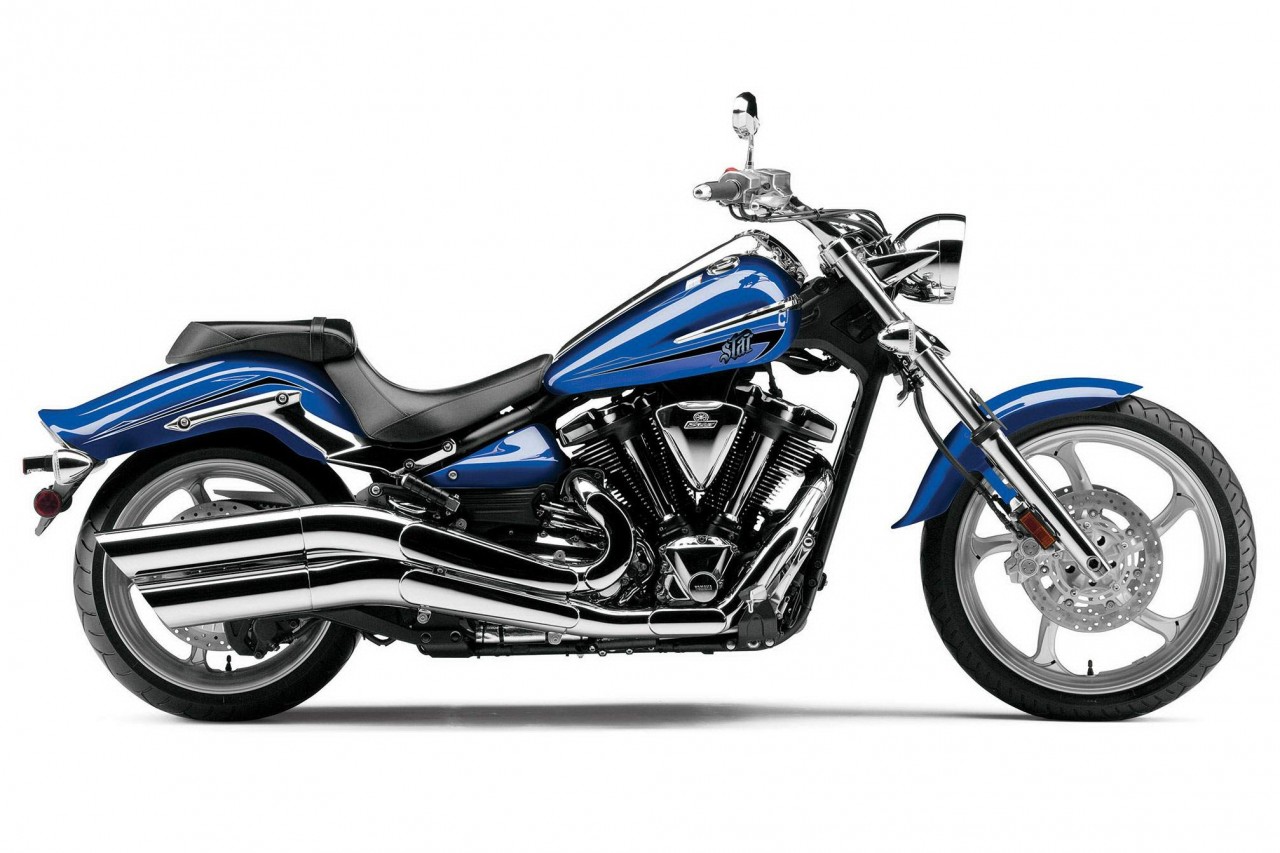

2014 Yamaha XV 1900 Raider S
|
Make Model |
Yamaha XV 1900 Raider S |
|
Year |
2014 |
|
Engine |
Air cooled, four stroke, 48° V-Twin cylinder, SOHC, 4 valves per cylinder. |
|
Capacity |
1854 |
| Bore x Stroke | 100 x 118 mm |
| Compression Ratio | 9.5;1 |
|
Induction |
Twin-bore fuel injection (FI) |
|
Ignition / Starting |
Electronic control unit (ECU) / electric |
|
Max Power |
73,6 kW 100 hp @ 4.250 rpm |
|
Max Torque |
167,8 Nm 17,1 kg-m @ 2.500 rpm |
|
Transmission / Drive |
5 Speed / belt |
|
Front Suspension |
46 mm fork |
|
Rear Suspension |
Adjustable link Monocross |
|
Front Brakes |
2x 298 mm discs |
|
Rear Brakes |
Single 310 mm disc |
|
Front Tyre |
120/70-21 |
|
Rear Tyre |
210/40R18 |
| Dimensions | Length 2570mm / 101.2 in Width 925 mm / 36.4 in eight 1165 mm / 45.9 in |
| Wheelbase | 1800 mm / 70.9 in |
| Seat Height | 695 mm / 27.4 in |
|
Dry-Weight |
331 kg / 728.2 lb |
|
Fuel Capacity |
15.9 Litres / 3.5 gal |
