Make Model |

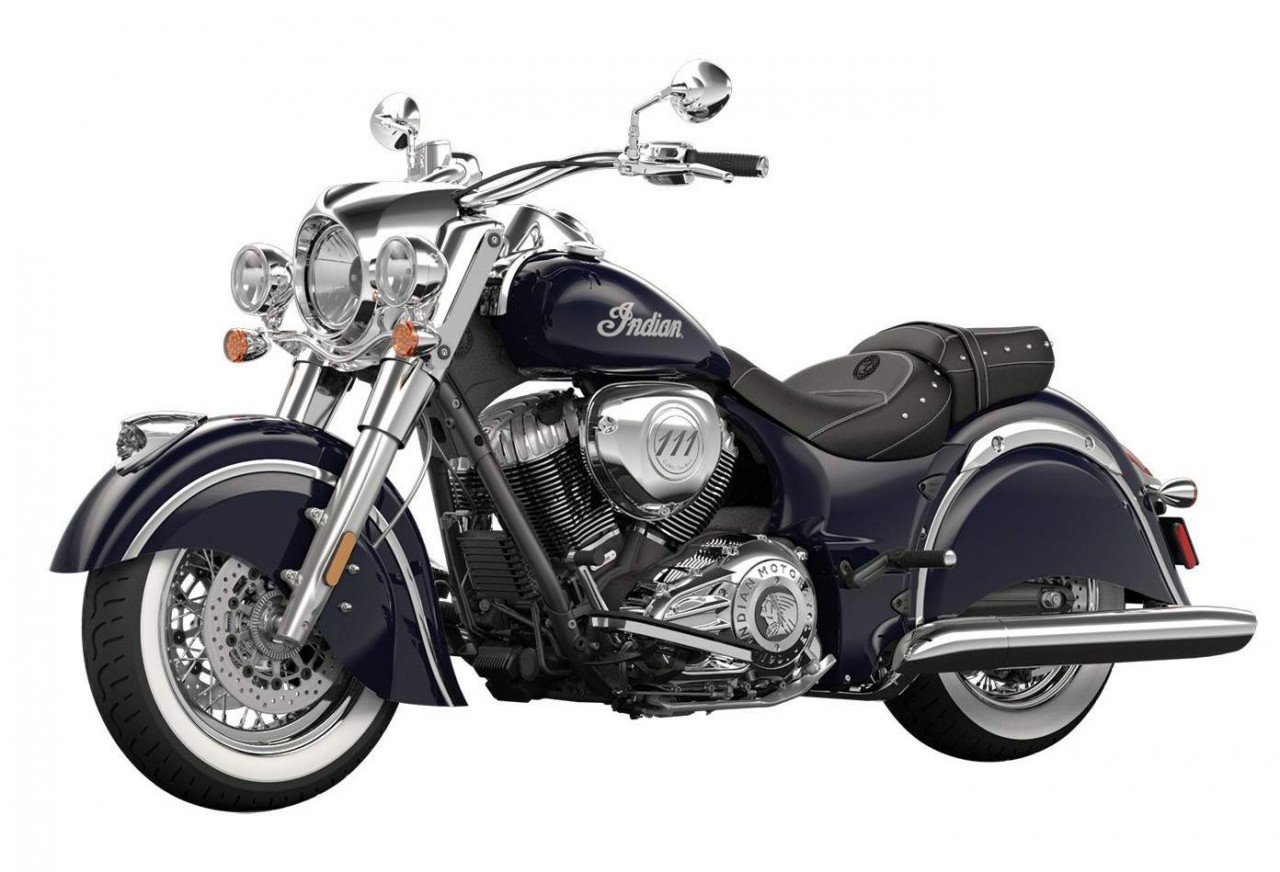

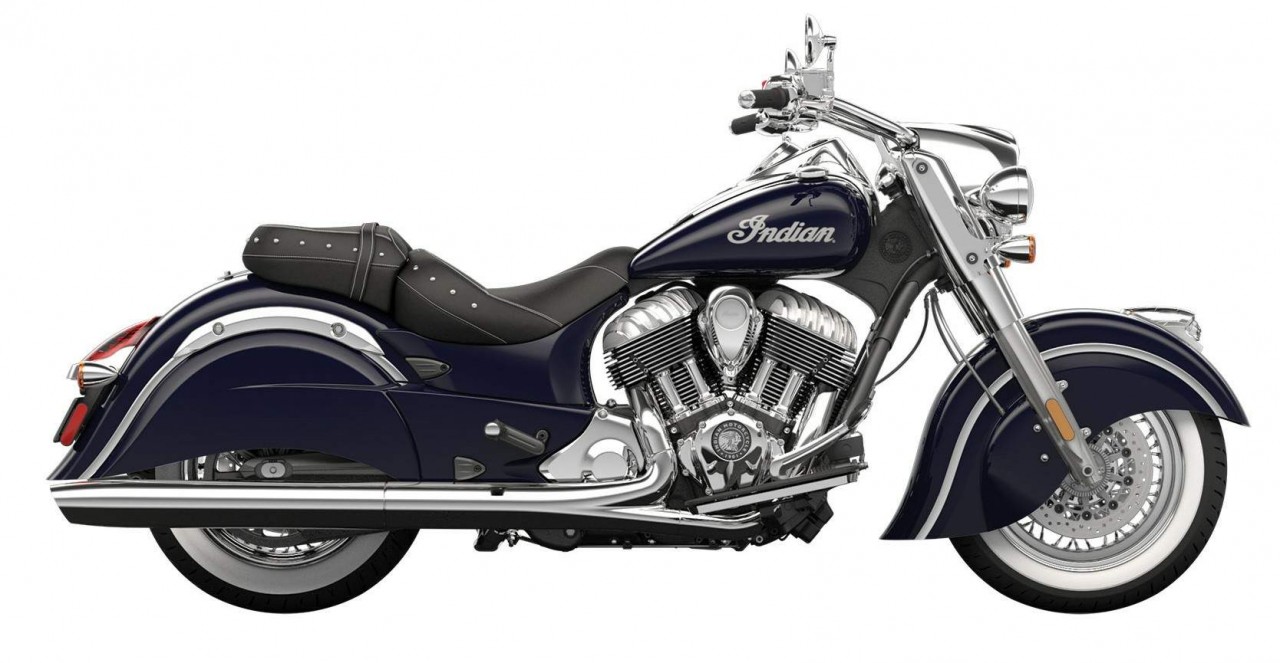

Indian Chief Classic |
|
Year |
2014 |
|
Engine |
Thunder Stroke™ 111 |
|
Capacity |
111 cu in |
| Bore x Stroke | 101x 113 mm |
| Compression Ratio | 9.5:1 |
|
Induction |
Electronic Fuel Injection System Closed loop fuel injection / 54mm bore |
|
Ignition / Starting |
- / electric |
|
Max Toque |
1349 ft-lbs 119.2 ft-lbs 161.6 N m @ 3000 rpm |
| Clutch | Wet, Multi-Plate |
|
Transmission / Drive |
6 Speed / belt |
| Gear Ratio | 1st 9.403 : 1 2nd 6.411 : 1 3rd 4.763 : 1 4th 3.796 : 1 5th 3.243 : 1 6th 2.789 : 1 |
| Final Drive | 2.2 : 1 |
| Frame | High tensile steel, monoshock |
|
Front Suspension |
Telescopic forks, 14.7 in 119 mm wheel travel |
|
Rear Suspension |
Single shock, 3.7 in wheel travel. |
|
Front Brakes |
2x Floating Rotor 4 piston calipers |
|
Rear Brakes |
Single Floating Rotor 2 piston calipers |
|
Front Tyre |
130/90B16 67H |
|
Rear Tyre |
180/65B16 81H |
| Wheelbase | 68.1 in |
| Rake / Trail | 29° / 6.1 in |
| Ground Clearance | 5.5 in |
| Dimensions | Length 103.7 in / Height 58.7 in |
| Seat Height | 29.0 in |
|
Wet-Weight |
812 lb |
| GVWR | 1260 lbs |
|
Fuel Capacity |
5.5 Gal |
